Deploy muticore solr on jetty

This tutorial guides you how to install multi core Solr on Ubuntu. I found this installation quite difficult because of lack of documentation. I did google research and found few useful documents. It can be found at the end of this tutorial under reference section.


Pre requirements for solr :-

  • Java 1.7 or above
  • servlet container such as tomcat,jetty etc.


solr environment :-

  • solr version – solr-4.8.1.tgz
  • jetty version – which comes with above solr version
  • OS – ubuntu 13.10


Installing Solr


1) Download latest solr version.


2) Extract it and copy example folder to /opt/solr

tar -xvf solr-4.8.1.tgz

cp -R solr-4.8.1/example /opt/solr


3) Edit default jetty

vim /etc/default/jetty


#here use multi core

JAVA_OPTIONS="-Dsolr.solr.home=/opt/solr/multicore $JAVA_OPTIONS";




# Use as host to accept all connections. (restrict it only to localhost by adding )

#here jetty was deployed on remote server



4) create the Solr user and grant it permissions


sudo useradd -d /opt/solr -s /sbin/false solr
sudo chown solr:solr -R /opt/solr


5) automatically start jetty on startup (optional)

sudo wget -O /etc/init.d/jetty http://dev.eclipse.org/svnroot/rt/org.eclipse.jetty/jetty/trunk/jetty-distribution/src/main/resources/bin/jetty.sh
sudo chmod a+x /etc/init.d/jetty
sudo update-rc.d jetty defaults


6) start the solr by starting jetty

sudo /etc/init.d/jetty start


7) Access the solr through the web browser


Add new core/Multicore




Configure multi core solr

1) Copy/duplicate existing core


cd /opt/solr/multicore

sudo  mkdir testcore

sudo  mkdir testcore/data

cp -R core0/conf testcore


2) Grant the ownership of testcore to the solr user

sudo chown -R solr:solr testcore


3) Add new core

go to solr home page

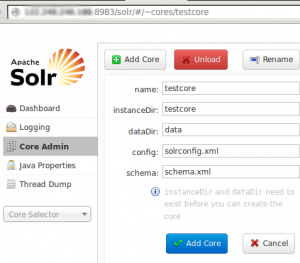

4) Click “Core Admin”  –> ” Add core” to add new core

Fill the pop up with the appropriate information

configure multicore on solr













After creating multi core named “testcore”

solr multicore





5) Edit solr.xml file

Add following line to multicore/solr.xml file to make visible the new core after jetty restart. Otherwise every time you are to add new cores once the jetty restarts. It is painful.

<core name="testcore" instanceDir="testcore">;

Following lines are already added to multicore/solr.xml for default cores

<core name="core0" instanceDir="core0">
<core name="core1" instanceDir="core1">


Secure the Solr

How to secure the Solr running on jetty or any other servlet container,  can be found from here





1) https://www.digitalocean.com/community/tutorials/how-to-install-solr-on-ubuntu-14-04

2) http://docs.ckan.org/en/latest/maintaining/solr-multicore.html

3) https://cwiki.apache.org/confluence/display/solr/Moving+to+the+New+solr.xml+Format
